Description

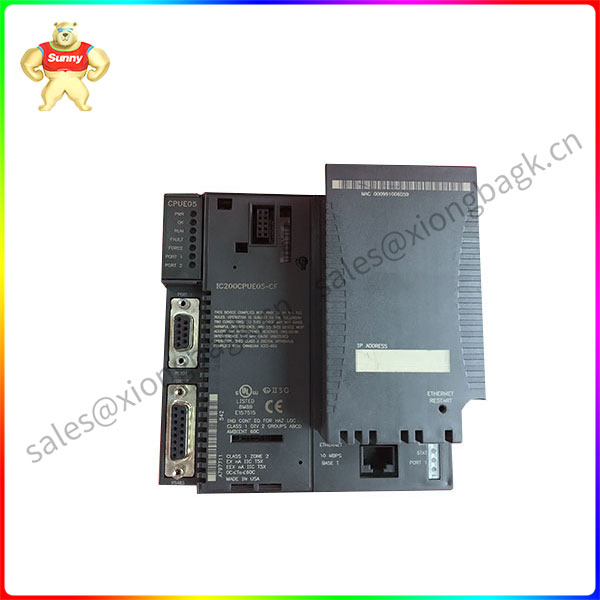

IC200CPUE05 GE VersaMax CPUE05 with Ethernet Interfaces
Features
- Supports up to 64 modules with up to 2048 I/O points
- Can be either autoconfigured or configured from a programmer using configuration software
- 64KB of configurable memory for the application program, hardware configuration, registers, analog inputs, and analog outputs
- Programming in Ladder Diagram and Instruction List
- Non-volatile flash memory for program storage
- Battery backup for program, data, and time of day clock
- Run/Stop switch
- Floating point (real) data functions
- Embedded RS-232, RS-485, and Ethernet communications
- Supports EZ Program Store device
- 70mm height when mounted on DIN rail with power supply
Specifications
- Part Number
- IC200CPUE05
- Dimensions (W x H x D in mm)
- 126 x 128 x 69.1
- Program Storage
- System flash, battery-backed RAM
- Power Requirements
- 5V uses 220mA, 3.3V uses 570mA
- Floating Point
- yes
- Boolean Execution Speed
- 0.8 ms/K (typical)
- Realtime Clock Accuracy (for timer functions)
- 100ppm (0.01%) or +/- 9sec/day
- Time of Day Clock Accuracy
- 100ppm at full temperature range
- Embedded Communications
- RS-232, RS-485, Ethernet
- Configurable Memory
- 64K bytes maximum
- Ethernet Data Rate
- 10Mbps (half- or full-duplex)
- Ethernet Port
- RJ-45, UTP
- Number of SRTP Server Connections
- 8
- Number of Ethernet Global Data (EGD) Configuration-Based Exchanges
- 32
- EGD Exchange Limits
- 100 data ranges per exchange, 1400 bytes of data per exchange
- EGD Time Synchronization
- NTP
- EGD Time Synchronization
- yes
- Load EGD configuration from PLC to programmer
- yes
- Remote Station Manager over UDP
- yes
- Local Station Manager (RS-232)
- via CPU Port 1
