Description
IC660BBA020 GE Combination I/O module
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ：3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
| Brand | GE Fanuc |
| Series | Genius I-O |
| Manufacturer | Emerson Automation / GE Fanuc (formerly) |
| Part Number | IC660BBA020 |
| Series | Genius I/O |
| Product Description | Combination I/O module |
| Part Number | IC660BBA020 |
| No. of Inputs | Four (4) analog inputs |
| Input Signals | 0–10 VDC, 10 VDC, 5 VDC, 0–5 VDC, 4–20 mA (or 1–5 VDC) |
| No. of Outputs | 2 |
| No. of Outputs | Two (2) analog outputs |
| I/O Resolution | 12 bits + sign |
| Output Signals | 0–10 VDC, 10 VDC, 5 VDC, 0–5 VDC, 4–20 mA (or 1–5 VDC) |
| I/O Update Frequency | Once every 4 ms |
| Supply voltage range | 18-56 VDC |
IC660BBA020
IC660BBA020
IC660BBA020
IC660BBA020

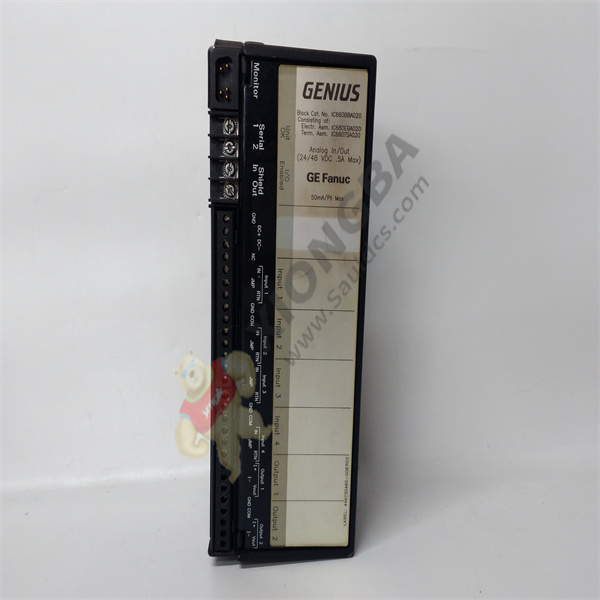

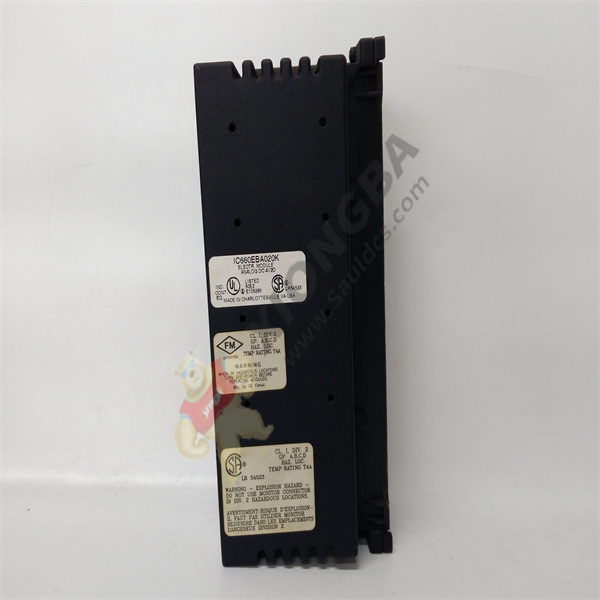

The IC660BBA020 is a voltage/current analog block in the GE Fanuc Genius I/O series. It has four input and two output circuits. Two types of analog blocks are available with a power supply of 115 VAC and 24/48 VDC. IC660BBA020 supports five analog ranges: 0-10 volts DC; -10 volts DC to +10 volts DC; -5 volts DC to +5 volts DC; 0-5 volts DC; and 4-20 mA/1-5 volts DC. The internal power supply of this block can drive a current load of 300 Ohms. Configurable block features include independent scaling; fault reports which can be enabled or disabled depending on input/output; selectable input filter time up to 1024ms; powerup default values for each output; and Low/High Alarm detection, among others.
IC660BBA020 is compatible with any handheld monitor IC66*HHM500, though HHM501 requires a change in configuration. The serial bus uses terminals 1 to 4 with AWG wires. Field devices use terminal 5 to 32 with AWG wires. Terminals 6 (DC+) and 7 (DC-) connect the power source to the 24/48 VDC. H and N terminals connect the 115 VAC block with the 250V, 1/8Amp slow blow fuse. Terminals 5, 12, 28, and 20 are for ground. Three terminals named common are for a source. The user can connect input voltage device between V+ and IN and V- and RTN terminal in series. The user can connect output voltage device to terminals COM and VOUT. JMP terminal is for jumper connection. Terminals I+ and I- are for the current mode. The first four input circuits convert incoming current or voltage signal to digital count with optional scaling. Circuit numbers 5 and 6 give output scaled digital count from CPU. I/O Enabled and Unit OK LEDs indicate the operating status of the block. The diagnostics system indicates fault messages.
