Description
Technical Requirements IC660ELB912J：

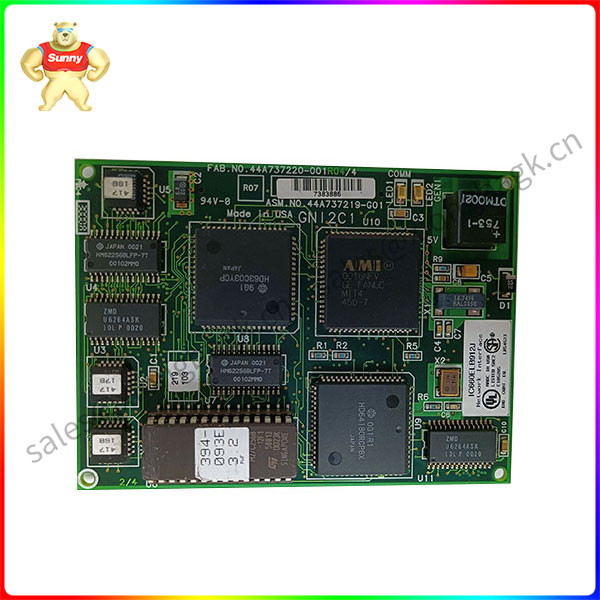

The IC660ELB912 is a Genius network interface card. This module is a sub-board of the IBM PC Interface module (PCIM). The card is installed on a single-slot or dual-slot PCIM module. It supports the I/O controller function of the host controller and allows the Genius I/O network to control, monitor, and manage remote I/O devices. The sub-board on the PCIM card was formerly manufactured by GE Fanuc and is now owned by Emerson Automation. The IC660ELB912 is responsible for performing housekeeping tasks, such as initialization and fault management for up to 30 devices located on the same Genius I/O network. It maintains the latest data images of controlled devices and is able to exchange data with other controllers on the same network by sending and receiving background messages that are not related to I/O commands or global data. The main PCIM device provides a status LED indicator to determine the operation of the connected sub-board, especially the normal GENI and normal communication. It supports a variety of configurable data rates, such as 38.4K, 76.8K, 153.6K standard or 153.6K extended. If two (2) child boards are connected to a two-slot PCIM, and each child board is connected to a separate Genius I/O bus, each child board must be set to the same baud rate as the card connection. In addition, two child boards can be connected to the same bus, so each child board must be configured with the same baud rate. If two (2) child boards are installed, a single child board requires 16k bytes of host memory and 32k bytes of host memory.
IC660ELB912 micro GENI subboard is GE Fanuc’s network interface board. It belongs to the Genius I/O family of modules and PLC components. It has backward compatible modules, shared RAM, and 16 KB of memory. The micro-GENI sub-board can be connected to a single – or two-slot IBM PC interface module (PCIM) and requires a 5-volt DC rated power supply to provide logical power. The IC660ELB912 miniature GENI subroutine can be easily installed using spacers and screws. It comes with two status indicator leds to inform the operator of the status of the equipment. These LED indicators are the GENI Normal LED and the Communication Normal LED, which show the operation and communication status of the equipment respectively. Two light-emitting diodes are located on the module panel to show the operation and communication of the device.
The IC660ELB912 Mini GENI Network Interface Board is a universal I/O controller designed specifically for Genius I/O systems. It provides fault detection for up to 30 bus modules. All communication signals from this module are buffered to the host bus via the motherboard. It also provides effective communication. The module’s shared RAM is optimized for use with IBM personal computers. The system memory stores buffer data, I/O data, and other information. It facilitates the use of remote I/O. The IC660ELB912 micro GENI subroutine is equipped with a 6303 microprocessor to provide optimal information writing convenience and provide maximum storage capacity. This child board comes with a DIP switch for configuration. During installation, be sure to leave at least 1/8 of an inch of space between the modules to provide airflow for cooling.
This article is from the official website of Zhangzhou Branch of Xiamen Xiongba E-commerce Co., LTD. Please attach this link: http://www.sauldcs.com/
IC660ELB912J
