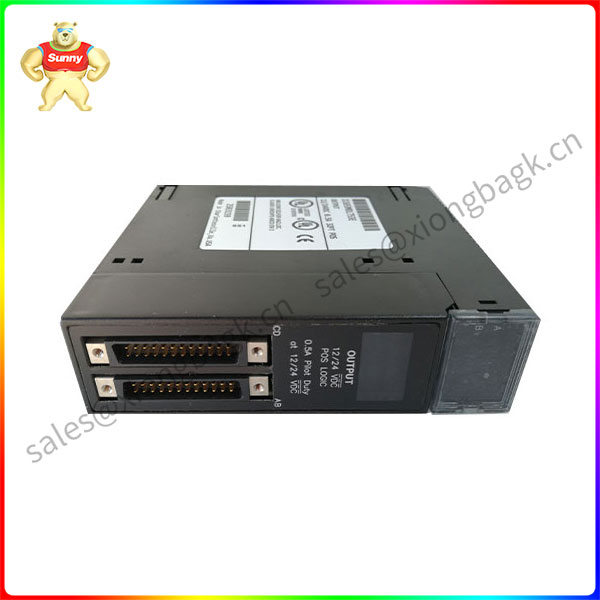

IC693MDL753 GE Discrete output module

The IC693MDL753 is a digital output module from the Series 90-30 Programmable Logic Controller (PLC) family. This module has Thirty-Two (32) positive logic output channels, generating 102 – 28.8 output voltage range with nominal voltages of 12 – 24 VDC. The IC693MDL753 is formerly manufactured by GE Fanuc Automation, now acquired by Emerson Automation. This module comes with output groupings specifically, Four (4) groups of Eight (8) outputs each. Each output group has 250 Volts isolation and 100 Volts between field side and logic side or optical isolation. The output current ratings of the IC693MDL753 are 0.5 Amperes per point with a maximum of 4 Amperes per group and a maximum of 3 Amperes per group common pin. It generates an inrush current of 5.4 Amperes for 10 ms while the On-state voltage drop of 0.3 VDC. The Off-state leakage current is 0.1 mA while the On and Off response time is typical for both signal transitions which is 0.5 ms. The internal power consumption of the IC693MDL753 is 260 mA source from the 5 VDC backplane. The IC693MDL753 is compatible with being used as a local I/O and distributed I/O module. It can be installed in any available slot of the chassis except the designated CPU, communication adapter, and specialty module slots. The IC693MDL753 occupies a single slot and can be installed as many as needed, limited by the I/O capacity and memory of the host controller. For wiring electrical loads to this discrete output module, recommended manufacturer cable assembly is IC693CBL315.
