IC695CPE330  IC695CPE330-AAAG  CPU w/Ethernet

Description

IC695PSA140 120/240VAC or 125VC Power Supply

The PACSystems* RX3i RX3i CPE330 is a richly featured programmable controller CPU equipped
with a 1GHz dual-core microprocessor, 64Mbytes of built-in program memory and two independent
high-speed Ethernet interfaces. It is ideally suited for multi-tier communications and for
synchronizing large amounts of data. Its metal housing provides superior noise immunity.
The CPE330 is programmed and configured over Ethernet via GE’s Proficy™ Machine Edition (PME)
software. It resides in the RX3i main rack and supports all RX3i I/O and Intelligent Option modules, up to 32K I/O points.

IC695CPE330-AAAA

CPU Features:
 Contains 64Mbytes of user memory.
 Optional Energy Pack, IC695ACC402, allows the CPU to save user memory to non-volatile storage in the event of loss of power.
 RX3i Hot Standby Redundancy CPU with support for PROFINET I/O using IC695PNC001 PROFINET Controllers.
 RX3i Hot Standby Redundancy with Ethernet (EGD) & Genius IO
 Ability to transfer user programs and/or data to and from USB 2.0 A type Removable Data Storage Devices (RDSDs).

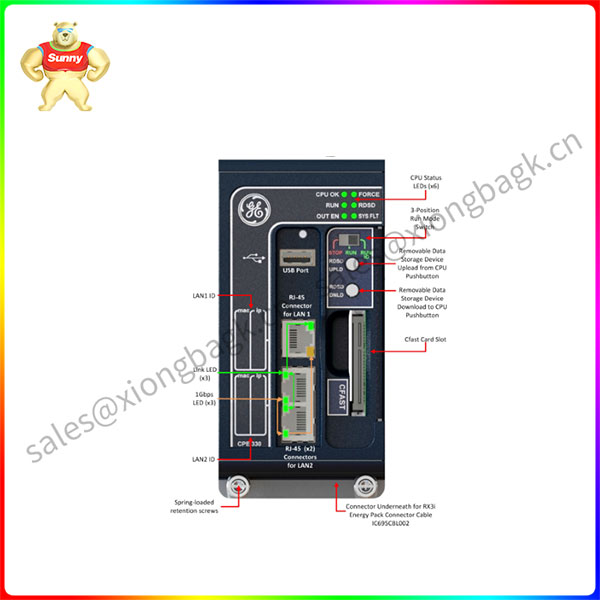

 Two independent 10/100/1000 Ethernet LANs. LAN1 attaches via the dedicated (upper) RJ-45 connector shown in Figure 1. LAN2 attaches via
the lower pair of internally-switched RJ-45 connectors.
 Ethernet Global Data (EGD) Class 1 supported on both LANs.
 Supports two independent Redundant IP addresses, one for each of the embedded Ethernet LANS.
 Achilles Level 2 Communications Certification
 The embedded Ethernet interface is supported by a dedicated microprocessor core. This dedicated

processing capability permits the CPU to support these two LANs with:
o up to 48 simultaneous SRTP Server connections,
o up to 16 simultaneous Modbus®/TCP Server connections.
o 32 clients are permitted; each may be SRTP or Modbux/SRTP.
