Description
The IC695CPU320 is a Central Processing Unit from the GE Fanuc PACSystems RX3i Series. The IC695CPU320 has an Intel Celeron-M microprocessor rated for 1 GHz, with 64 MB of user (random access) memory and 64 MB of flash (storage) memory. RX3i CPUs are programmed and configured to control machines, processes, and material handling systems in real time.
The IC695CPU320 has a pair of independent serial ports built into its chassis. Each of the two serial ports occupies a slot on the system base. The CPU supports SNP, Serial I/O, and Modbus Slave serial protocols. In addition, IC695CPU320 has a dual backplane design with bus support for RX3i PCI and a 90-30-style serial bus. Like other CPUs in the Rx3i product family, IC695CPU320 provides automatic error checking and correction.
IC695CPU320 uses Proficy Machine Edition, the development environment common to all GE Fanuc controllers. Proficy Machine Edition is made for creating, running and diagnosing operator interface, motion and control applications.
Eight indicator LEDs on the CPU help with troubleshooting. Each LED answers to a separate function, except for the two LEDs labeled COM 1 and COM 2, which belong to different ports rather than to different functions. The other LEDs are CPU OK, Run, Outputs Enabled, I/O Force, Battery, and Sys Flt — which is an abbreviation for “system fault.” The I/O Force LED indicates whether Override is active on a bit reference. When the Outputs Enabled LED is lit, then output scan is enabled. Other LED labels are self-explanatory. Both the LEDs and the serial ports are clustered on the front of the device for the easy visibility.

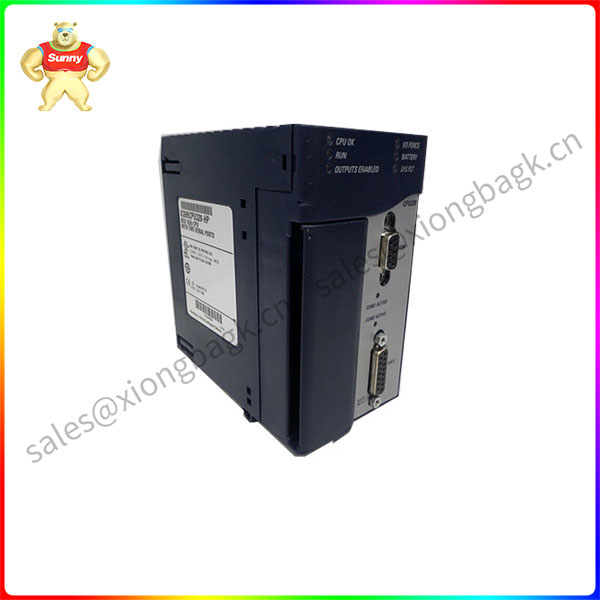

IC695CPU320
The IC695CPU320 is a GE Fanuc / Emerson Automation controller module. This module belongs to the PACSystems RX3i controller platform. This controller may be used for efficient controlling of industrial machines and processes. It features High-speed data transfer via the Peripheral Component Interconnect (PCI) slot and supports serial backplane for migration of Series 90-30 I/O systems.
The IC695CPU320 has built-in Two (2) communication ports that supports RS232 and RS485 communication standard. These communication ports communicate with programming workstations, Human Machine Interface (HMI), Supervisory Control and Data Acquisition (SCADA) systems using the Series Ninety Protocol (SNP) slave mode. This controller may be installed in Rx3i 12 Slot Universal Backplane with catalog number IC695CHS012 and Rx3i 16 Slot Universal Backplane with catalog number IC695CHS016.
The GE Fanuc IC695CPU320 module is capable of executing 1000 Boolean instructions in 0.047 milliseconds. The module supports 512 program blocks. The maximum size of a program block is 128 kilobytes. Two embedded communications ports are provided on the module which are the RS-485 and RS-232 ports. The serial protocols that are supported include the SNP, Serial I/O, and Modbus RTU slave protocols.
The IC695CPU320 module communicates with a programmer and an HMI through the serial port by using the SNP slave protocol. The module communicates with smart options modules and I/O over the dual backplane bus. The environmental specifications include a 0 to 60 degrees Celsius operating temperature range. The IC695CPU320 module is supports both a serial backplane bus and an RX3i backplane bus and it draws 1 Amp of current at 3.3 Volts DC from the backplane and 1.2 Amps of current at 5 Volts DC from the backplane. Six LEDs are provided on the front panel for module status updates.
