Technical Specifications for IC697BEM713
| Brand | GE Fanuc |
| Series | Series 90-70 |
| Manufacturer | Emerson Automation |
| Part Number | IC697BEM713 |
| Series | Series 90-70 |
| Product type | Bus transmitter module |
| Part Number | IC697BEM713 |
| Slot required | 1 |
| Product Description | Bus Transmitter module |
| Voltage input | 5 Volts DC |
| Compatibility | IC697 PLC |
| Current draw | 1.4 Amps |

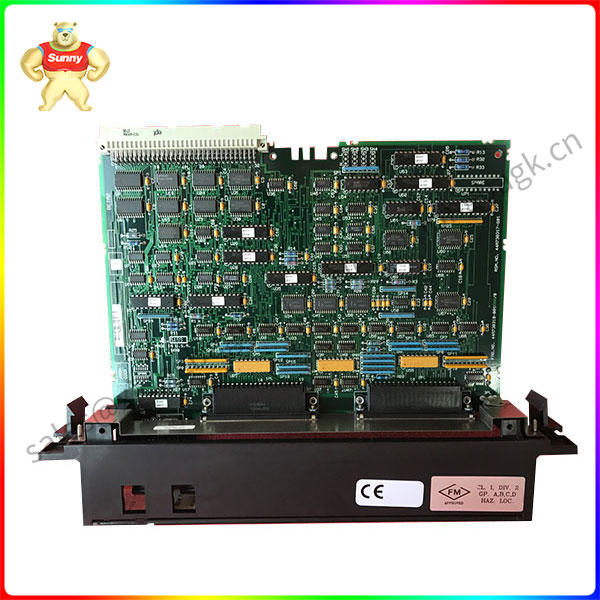

The Series 90-70 module with catalog number IC697BEM713 is a Bus Transmitter module. This module is used to the local bus where the Centra Processing Unit (CPU) is installed, allowing additional I/O and option modules to be installed to the system. This bus transmitter module is capable of handling up to Seven (7) Bus receiver Modules with catalog number IC697BEM711.
When implementing Local Bus expansion, the maximum distance from the IC697BEM713 Bus Transmitter Module (BEM) to the last IC697BEM711 Bus Receiver Module (BRM) must not exceed 50 ft. Additionally, the last BRM must be installed with a terminating resistor with catalog number IC697ACC702, to close the daisy-chain network. This terminating resistor is attached to the Expansion Port Out of the last BRM.
The IC697BEM713 comes with One (1) Parallel Port used for programming and configuration functions and One (1) Expansion port that connects to the 1st BRM of the network. The appropriate programming software to configure settings and download configuration to the IC697BEM713 are the MS-DOS or Windows programming software configuration function.
The IC697BEM713 occupies a single slot of the chassis, specifically, installed to the to any slot except slot 1 which is reserved for the Series 90-30 CPU. This module has a current draw of 1.4 A, effective data rate of 500 Kbytes / sec and duration to store 16Kbyte program is 20-30 Seconds. This module is designed in compatibility with ME standard C.1. Compatible expansion cables for use with this transmitter module are IC600WD005A (5 ft. (1.5m) cable; IC600WD010A (10 ft. (3m) cable; IC600WD025A (25 ft. (7.5m) cable and IC600WD050A (50 ft. (15m) cable.
The GE Fanuc IC697BEM713 module is a bus transmitter module from Series 90-70. It permits expansions from the main rack when additional modules are required in the system. The IC697BEM713 module allows for expansion to an additional seven IC697 PLC racks. The IC697BEM713 module also provides a parallel interface which can be used by a programming device. The IC697BEM713 module occupies one slot in the rack. There are 2 connectors on the IC697BEM713 module: the connector on the top is provided for interfacing with a programming device and the connector on the bottom allows for daisy-chain configuration to expansion racks through bus receiver modules. The IC697BEM713 modules requires 5 Volts DC voltage from the system backplane and it draws 1.4 Amps of current.
IC697BEM713
