Description
Technical Specifications IC697BEM731

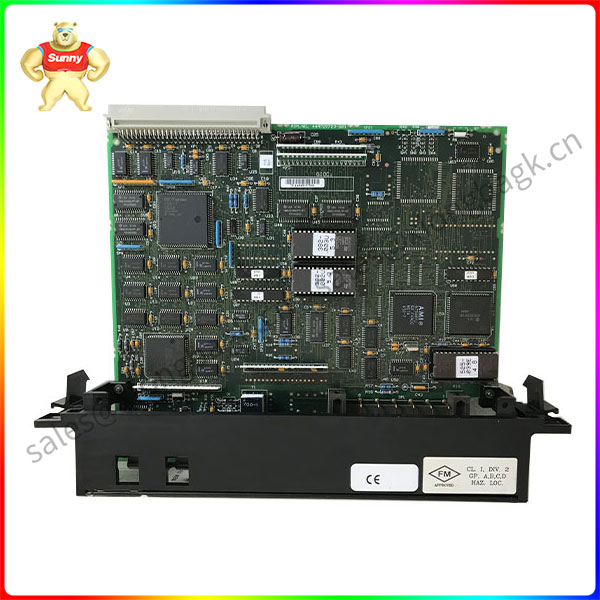

The IC697BEM731 is a Genius Bus controller module, part of the GE Fanuc Series 90-70 series Programmable Logic Controllers (PLCS). This module is primarily used to connect up to thirty (30) devices and transmit data by passing tokens between all configured devices on the same bus.
The IC697BEM731 has one (1) channel for interfacing with devices on the same bus and one (1) Handheld monitor (HHM) port for downloading the configuration to the module using MS DOS or Windows programming software configurator functions.
The IC697BEM731 was delivered without a defined bus address. The default address of the configuration software is 153.6 kilobor, and the bus address is 31. You can change this default address by downloading the valid configuration to the CPU. When configured at 153.6 kilobort (standard), the maximum allowable distance of the communication bus is 2000 ft; 3500 ft when configured with 153.6 kilobort (extended); 4,500 feet when configured at 76.8 baud and 7,500 feet when configured at 38.4 baud. All devices on the same bus or network must be configured with the same baud rate. Otherwise, communication cannot be established or is unstable.
The physical communication cable used to establish the network is Belden 9182 cable, GE catalog number IC660BLC001, 15 inches, quantity. 3 and IC660BLC003 with 36 inch, quantity. 1. The bus terminal plug must be installed at both ends of the bus. The directory number is IC660BLM506 150 ohm. 4 and IC660BLM508, 75 ohms, quantity. We have four resistors.
The IC697BEM731 bus controller supports global data transfer between cpus through Windows-based software configuration, and it can be extended with the IC697 PLC alarm system to report timestamp failures on processor data tables. The back end of the bus controller module has a handheld monitor port for connecting the handheld monitor device and a connector for establishing the IC66 bus connection. The IC697BEM731 bus controller is configured with Windows or MS-DOS based configurator capabilities. By default, the Windows-based configurator feature sets the baud rate to 153.5 kilobort and the serial bus address to 31. Additional baud rates and serial bus addresses can be assigned using the configurator function. The IC697BEM731 bus controller performs self-diagnosis at installation, and it has LED indicators showing operation and communication status updates.
