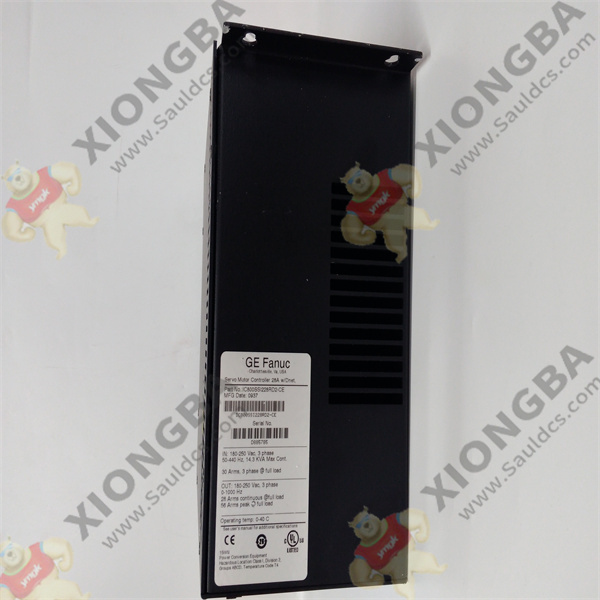

IC800SSI228RD2-CE GE Servo control module

Description

Technical Specifications for IC800SSI228RD2-CE

The manufacturer has discontinued production

Servo control 28 amp 230 volt AC equipment net 2SK

IC800SSI228RD2-CE Servo motor servo motor has two technologies worth noting, one is a high density motor, using a design idea called “large pole motor”. For example, for a six-pole nine-slot motor, the stator is composed of nine independent poles, and a centralized coil is wound on each pole, and then the nine poles are assembled to form a nine-slot motor core. Since each pole is wound and shaped independently, the tank full rate can be kept up to 90% even with automaton winding. This kind of motor has good manufacturing process, space utilization and volume are minimized, so it is called high-density motor. From the operation principle, this kind of motor does not belong to the rotating magnetic field motor, it works under the three-phase pulse vibration magnetic field, therefore, its applicability, design method and operation mode have certain particularity, so this kind of motor is not suitable for square wave current drive. The other type is embedded magnetic steel rate servomotor, which can make use of the characteristics of alternating and direct axis inductance changing with position caused by salient pole effect to form a true sensorless rate servo electric drive system. In addition to various kinds of photoelectric encoders, magnetic encoders deserve attention. The volume and weight of the magnetic encoder are dozens of times smaller than the photoelectric encoder, the temperature range is wider, almost not afraid of shock and vibration. Its working principle is very simple, its stator is a chip embedded with Hall magnetic sensor and DSP, the size can be as small as MSOP-24 package, its rotor is a bipolar magnetic steel. It has a resolution of 10-12 bits and an accuracy of 8-10 bits. Such magnetic encoders are available. As a space application, in order to meet the requirements of -35℃ -80 ℃ environment, it is almost difficult to use the traditional photoelectric encoder, so we developed a magnetic encoder by ourselves, with 16 bits resolution and 12 bits accuracy. The signal processing circuit of magnetic encoder coexists in the drive and control circuit (FPGA), forming the integration of sensor and drive and control circuit. Current sensor is indispensable for servo control. Resistance sampling can be used in low-power system, and Hall current sensor [1] can be used in general. In both methods, the analog signal is converted to digital signal, which is then used in digital servo control.IC800SSI228RD2-CE  The output form of the above A/D conversion is usually a serial digital pulse or pulse-width modulated signal. In 2003, American IR Company launched a single chip rate servo control system, which includes: motor vector FOC controller, current PI regulator, speed PI regulator, SVPWM modulator, sensor interface, SPI and parallel communication interface. The most important feature of IR’s single-chip rate servo control system is that it allows users to specify hundreds of parameters in real time and initialistically. This technology realizes all servo control modules such as FOC controller, current PI regulator, velocity PI regulator, position PID regulator, velocity feedforward controller, IIR filter, SVPWM modulator, trapezoidal velocity trajectory generator, position instruction processor, monitoring and protection link, communication module, register stack and so on in one FPGA. And the internal integration of CPU, can complete keyboard, display and external communication control, for the real digital programmable system on chip (SOPC). Since all the control algorithms are implemented in hardware, the servo controller can achieve quite high performance. The sampling frequency of current loop and velocity loop can reach 20kHz, and the sampling frequency of position loop can reach more than 10kHz. The frequency index is mainly limited by the chip performance. Through the upper computer can access all internal registers, can achieve a variety of control purposes. All parameters can be modified online, including switching frequency, dead time, regulator parameters, filter parameters, etc. It is suitable for the drive and control of PMSM, IM, BLDCM and other different motors, and is compatible with hall sensor, incremental/absolute code plate, magnetic encoder, rotary transformer and other sensor interface signals. Can receive pulse instruction, analog instruction and digital instruction and other input signals, and through the upper computer or control panel to complete all the operation functions. With controller identification code interface, easy to realize multi – axis control. IC800SSI228RD2-CE This monolithic controller greatly reduces the volume of the system, improves the anti-interference, coupled with perfect protection measures, to ensure the reliability of the system operation.

IC800SSI228RD2-CE

IC800SSI228RD2-CE

IC800SSI228RD2-CE
