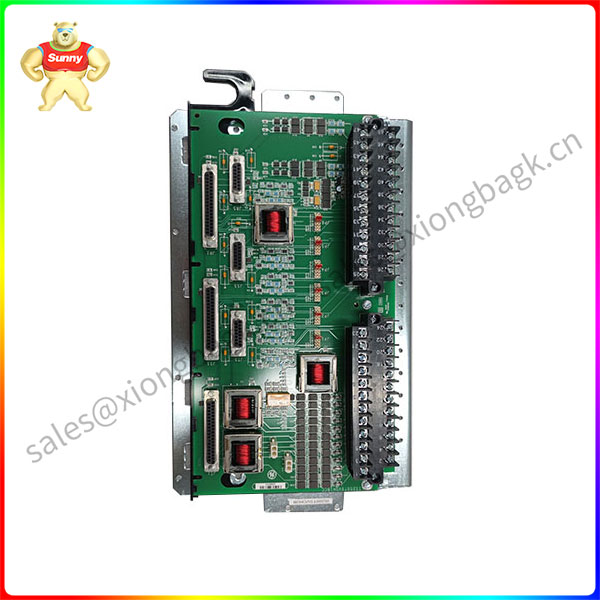

IS200TSVOH1BBB SERVO TERMINAL BOARD
Part No.: IS200TSVOH1BBB
Manufacturer: General Electric
Country of Manufacture: United States of America (USA)
Span: 0.3532 to 4.054 V
Size: 17.8 cm high x 33.02 cm wide
Technology: Surface mount
Temperature Operating: -30 to 65oC
Product Type: Servo Terminal Board
Availability: In Stock
Series: Mark VI
Functional Description
IS200TSVOH1BBB is a Servo Terminal Board developed by GE. It is a part of the Mark VI control
system. The Servo Terminal Board (TSVO) interfaces with electro-hydraulic servo valves responsible
for actuating steam/fuel valves in industrial systems. By providing both Simplex and TMR signals, TSVO
ensures redundancy and fault tolerance, minimizing the risk of system failures and enhancing overall
reliability. Redundant signal distribution and external trip integration contribute to system resilience and robustness.
Features
- Interface Components: Interfaces with two electro-hydraulic servo valves, which control the operation
- of steam/fuel valves in the system. Valve position is measured using linear variable differential transformers (LVDT), ensuring accurate feedback on valve positions.
- Communication Interfaces: Two cables connect TSVO to the I/O processor (VSVO), utilizing the J5
- plug on the front of VSVO and the J3/4 connectors on the VME rack. These connections
- facilitate the transmission of control signals and feedback data between TSVO and the I/O processor.
- Signal Distribution: Provides Simplex signals through the JR1 connector, ensuring straightforward
- communication for essential functions.For redundancy and fault tolerance, TMR (Triple Modular
- Redundancy) signals are distributed to the JR1, JS1, and JT1 connectors, allowing for resilient operation even in case of component failures.
- External Trip Integration: Plugs JD1 or JD2 serve as connection points for an external trip from the
- protection module, enhancing system safety and reliability. Integration with the protection module
- enables swift response to critical events or abnormal conditions, allowing for timely shutdown or corrective actions.
- Compatibility and Expansion: Designed to seamlessly integrate with existing control systems and
- infrastructure, offering compatibility with standard connectors and communication protocols. The board
- layout and connectors facilitate easy expansion or integration of additional components or functionalities as per system requirements.
