Description
The IS200VTURH2B is a PCB component manufactured by GE for the Mark VI system. The Mark VI is a steam/ga
s turbine management system created and released by General Electric as part of their ‘Speedtronic’ line. This was
one of the last Speedtronic systems released by GE, and one of the most technologically advanced. The Mark VI in
cludes fully programmable software maintenance tools available in the systems HMI (human-machine interface.)
As a Primary Turbine Protection board, the IS200VTURH2B has multiple functions, including monitoring shaft and
voltage current, and (in gas turbine applications) monitoring Geiger-Mueller flame detectors. The board monitors four
-speed inputs from passive magnetic sensors to maintain these functions. Flame detectors help determine if carbon bui
ldup or other contaminants are reducing light detection within the system. This PCB can also issue a trip command in tu
rbines that do not have a mechanical overspeed bolt.

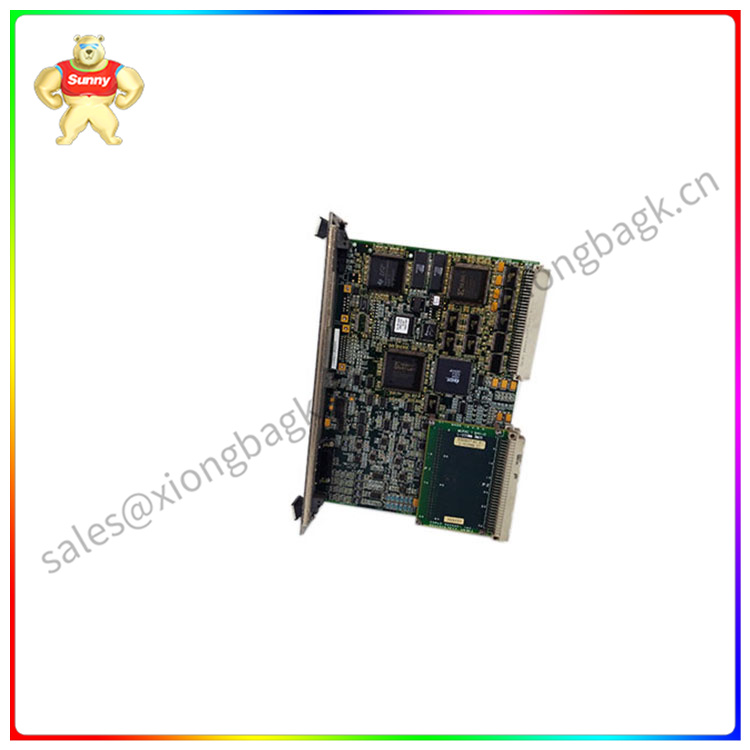

The IS200VTURH2B is built with a double-wide faceplate. This faceplate has few components, but it does have three
LED indicators and cable connectors. The faceplate connects to the front board edge via three screws.
IS200VTURH2BAC
The IS200VTURH2B has two backplane connectors plus other connectors. It has thirteen transistors, inductor coils,
as well as resistors and capacitors on both the front and back of the board. The board includes an auxiliary board att
ached via four standoffs that has an additional backplane. The board has integrated circuits, including SRAM and RA
M chips, oscillating chips, and FPGAs.
