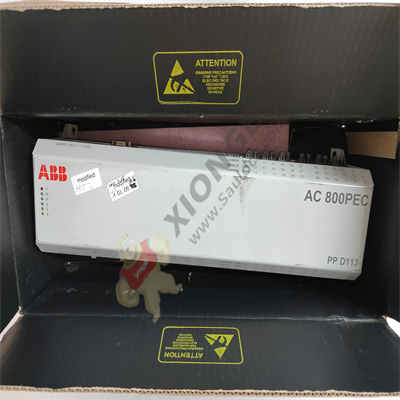

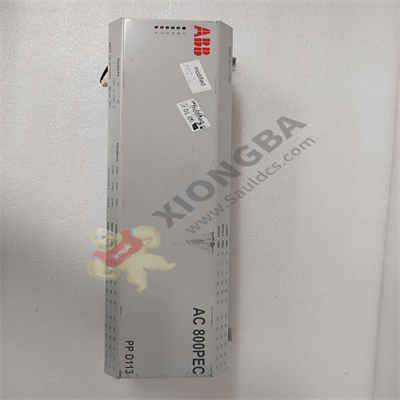

PPD113B03-26-100100 3BHE023584R2625 controller
Technical Requirements:
PPD113B03-26-100100 3BHE023584R2625 controller
Combinatorial logic controller is composed of sequence circuit, instruction decoding circuit and combinatorial logic circuit. Through the instruction decoder to determine the current execution of the instruction, combined with the timing circuit generated by the beat, together as the combined logic circuit input results output the corresponding control signal. Combinator-logic controller is composed of complex combinator-logic gate circuit and flip-flop, and has high execution speed, so it is widely used in computer structures such as RISC. [1]
Design steps:
1. Design the instruction system of the machine: specify the types of instructions, the number of instructions and the format and function of each instruction;
2. Preliminary overall design: such as register setting, bus arrangement, computer design, connection relationship between components, etc.;
3. Draw instruction flow chart: mark the operation of each instruction at what time and what part;
4. Arrange operation schedule: that is, decompose each operation into micro-operation according to the instruction flow chart, and list the micro-operation to be carried out by the machine according to the time period;
5. List the expression of microoperation signal, simplification and circuit realization.
