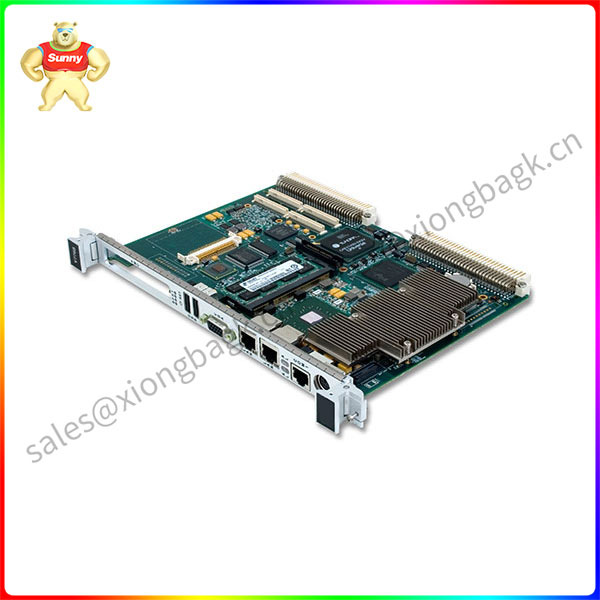

V7768-312001 350-930100 7768-312001-A0 6U single board

The V7768 dual slot VME single board computer (SBC) provides system designers with the flexibility

to cost-effectively accommodate extensive and varied I/O functionality, while delivering outstanding processing performance.

Flexibility and ease of use

One of the first products from Abaco Systems to leverage the power of Intel’s dual core architecture, the

V7768 offers up to 2.16 GHz of processing speed via the Intel Core 2 Duo processor along with the Intel

945GME Express Chipset and a rich I/O set. To make installation and maintenance easier, the V7768

incorporates the EasyRail PMC mounting system to allow PMC option boards to be mounted when access

is only available from the exposed “top” side. No longer having to detach multi-slot carrier assemblies

to gain access to the PMC mounting screws significantly reduces configuration time.

V7768-322001

The V7768 is a VMEbus single board computer from GE Fanuc Intelligent Platforms, offering up to
2.16 GHz of processing speed via the Intel Core 2 Duo processor with up to 2 Gbyte DDR2 SDRAM.
This board integrates the Intel 945GME Express Chipset and offers a very rich I/O set, making this
a very flexible addition to our expansive line of Intel architecture VME SBCs. I/O options include
dual Gigabit Ethernet, two SATA interfaces, four USB 2.0 ports, keyboard/mouse/SVGA on the
front panel, as well as a PCI-X capable PMC site. The V7768 also offers a Celeron® M processor
option that allows for 20 more degrees on the upper operating temperature limit.
The V7768 provides further customer defined I/O capabilities with the board-to-board connector
for the PMC237CM1/V PMC expansion board from GE Fanuc Intelligent Platforms, which gives
customers three additional PMC expansion sites in addition to the PCI-X PMC site on the V7768.
