Description
IS200TREGH1BEC GE Circuit board assembly
Can be transported to all parts of the world. (Exclude areas that cannot be transported under special circumstances! )
If necessary, please contact customer service.
[service contact information]
Tel: 18059884797 (WeChat with the same number)
QQ:3095989363
Email: sales@xiongbagk.cn
Address: Unit 2009, Chuangxiang Center, No.1733, Lvling Road, Siming District, Xiamen
① 24-hour email reply (12 hours);
③ For shipment to countries outside Asia, please contact the seller.
The IS200TREGH1BEC is a board component within the Mark VI or Mark VIe Speedtronic system from GE. Both of these systems are used for the management of industrial gas and steam turbines.
The IS200TREGH1BEC is associated with the Emergency Turbine Protection board (VPRO) and helps to provide independent emergency overspeed protection. This system is separate from the main turbine control system and controls trip solenoids using the associated TREG board. This also works in conjunction with a TRPG board. The IS200TREGH1BEC is used to provide the positive side of 125 VDC trip function and the other board the negative side. Either board can provide trip functionality.

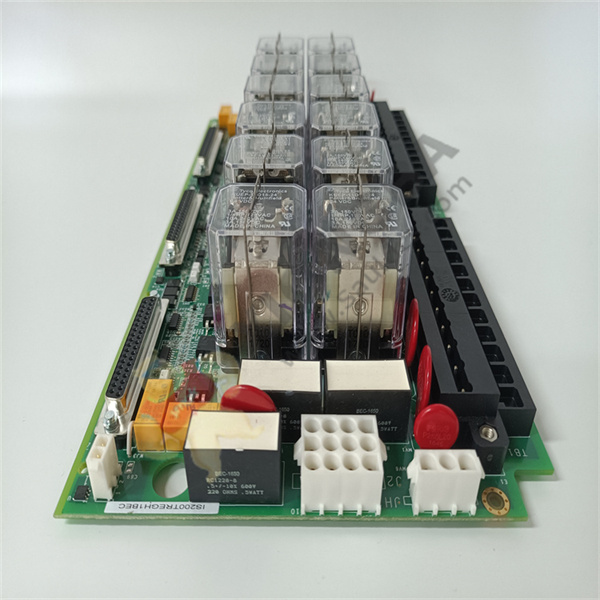

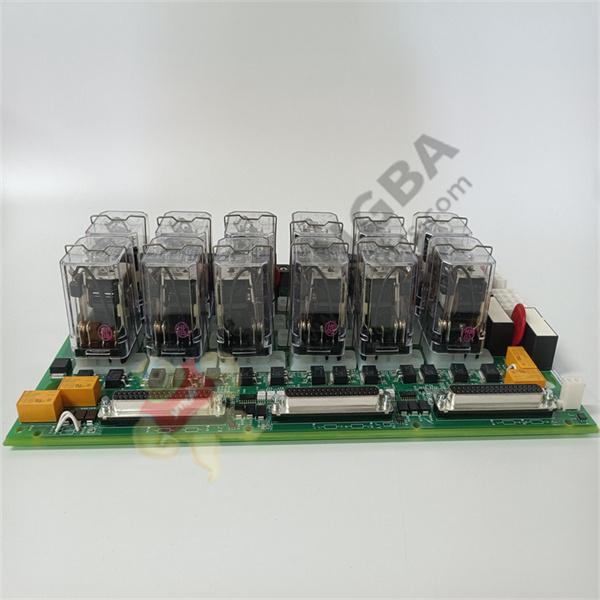

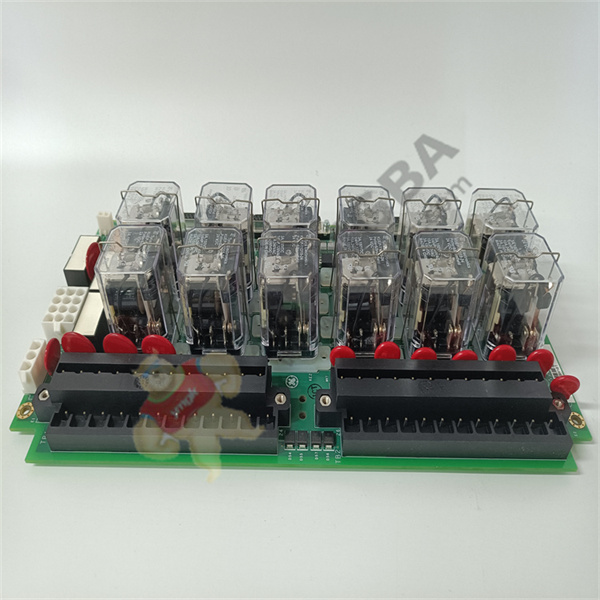

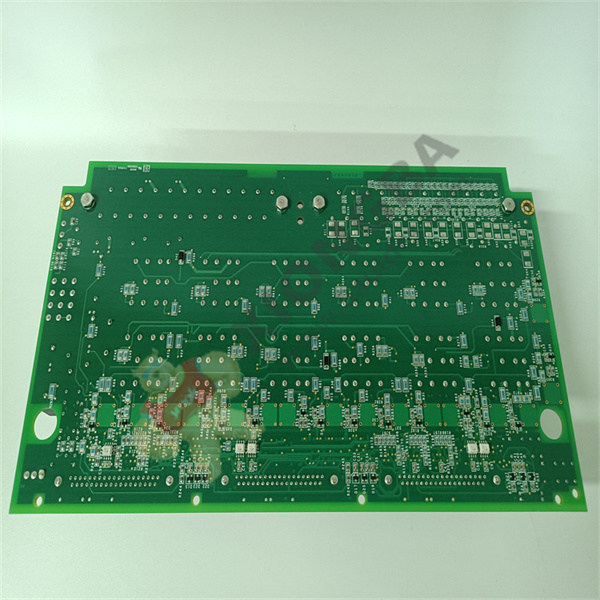

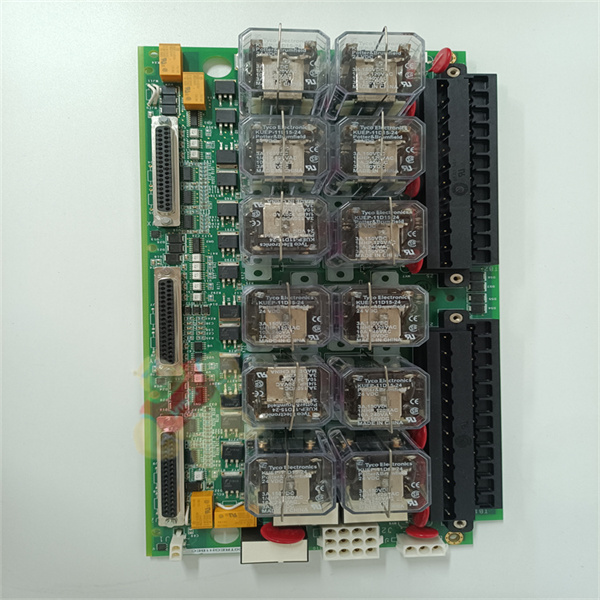

The IS200TREGH1BEC has a total of twelve relays on its surface. Nine of these are used to form three groups of three relays that vote upon inputs controlling trip solenoids. These relays have 28 VDC supplied from the VPRO board. Other board components include three (female) d-shell connectors for cable connections, two terminal strips, and several additional female plug connections. The board also has twelve metal oxide varistors, several wire jumpers, as well as integrated circuits and transistors. Components like resistors, diodes, and capacitors are mounted on both the front and rear surfaces of the board.
The IS200TREGH1BEC carries the board id, the GE logo, a barcode, and several other codes for identification. These help the user locate the proper manual or user guide for their particular part. For detailed information regarding the installation or maintenance of the IS200TREGH1BEC, please refer to these publications originally supplied by GE.
Application industry:
Power plants, steel mills, automobiles, petrochemicals, tobacco, metallurgy
Note: Please follow the instruction manual of this product to install and debug, so as not to damage the product
Reasons for choosing us—-Seven core advantages:
Brand new imported:
All products are produced and supplied by foreign original factories
Rigorous test:
All products have been strictly tested for a long time by professional and technical personnel before delivery.
Free product consultation:
Before purchasing and after using, if you encounter technical problems with the product, we will provide you with a 24-hour service hotline for free product consultation.
One year warranty:
Brand new product is guaranteed for one year
15 days replacement:
Within 15 days, there is no reason to return or exchange for non-artificial quality problems
Order directly from the original factory abroad:
Eliminate intermediate links, minimize costs, have a large number of spot stocks, and directly supply the country
SF Express:
National SF Express Free Shipping, within the range arrives the next day
