Description

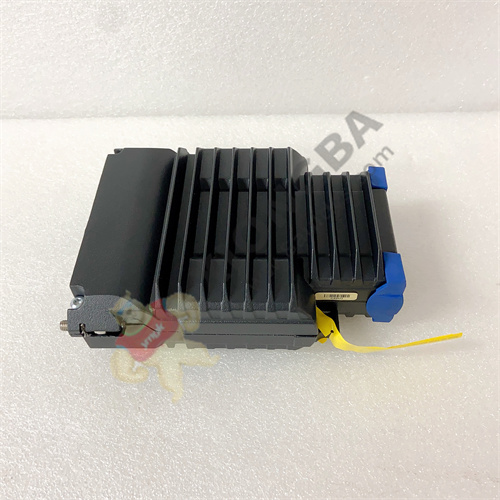

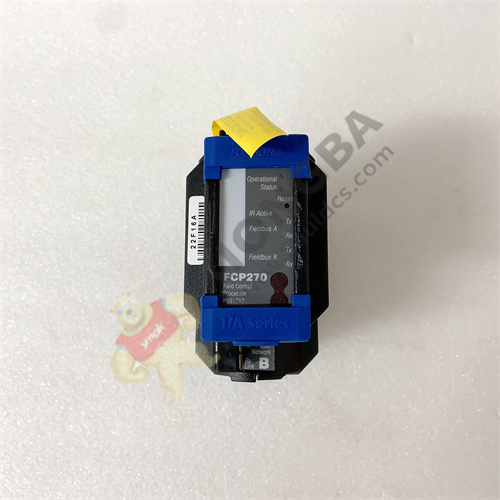

FCP270 P0917YZ foxboro System board card
Technical Requirements:
The following I/A Series control processors support the ISCM:
Field Control Processor 270 (FCP270) – with I/A Series version 8.4.3 with Quick Fix
QF1012617 installed (and later)
Z-Module Control Processor 270 (ZCP270) – with I/A Series version 8.4.3 with
Quick Fix QF1012617 installed (and later)
Both LB- and FB-style applications support a total of 16 ISCMs per I/A Series control processor
(FCP270, ZCP270 or later); a maximum of 204 modules (ISCMs, I/O modules and 200 Series
FBMs) is supported per FCP270 and a maximum of 128 modules is supported per ZCP270, provided the maximum CP Fieldbus load and intrinsically safe I/O power supply load is not
exceeded. Refer to Table 1-1 for a complete list of requirements.
To communicate with a ZCP270, the ISCM(s) must link to an optionally redundant
FCM100E/Et module (shown in Figure 1-5 and Figure 1-6).Using a ZCP270 and multiple
FCM100E/Ets may reduce the fieldbus loading but will not increase the maximum number of
supported letterbugs over 128.
Connection diagrams are shown in Appendix A “CP270 to ISCM Connection Diagrams
We have hundreds of millions of inventory, product parts tens of thousands, if you are interested in our products can contact us at any time.
