1746-A4 Allen-Bradley SLC 500 I/O Chassis with 4 Slots

1746-A4 Allen-Bradley SLC 500 I/O Chassis with 4 Slots

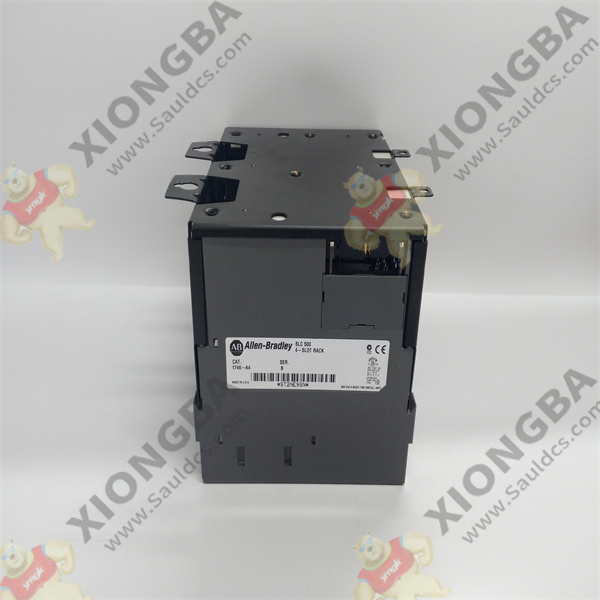

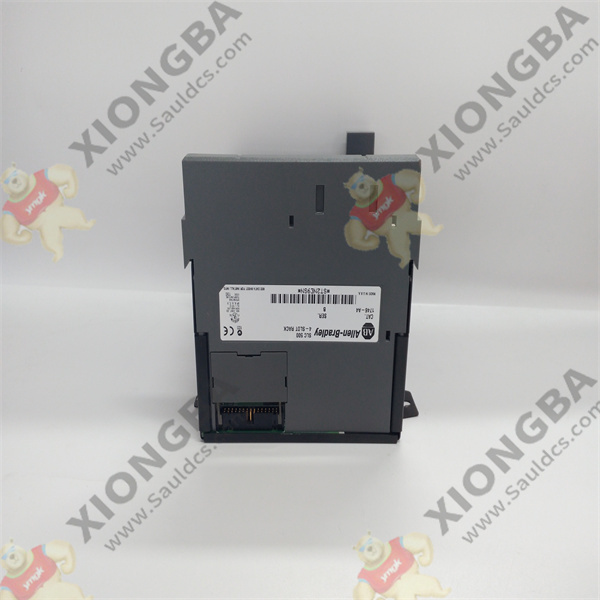

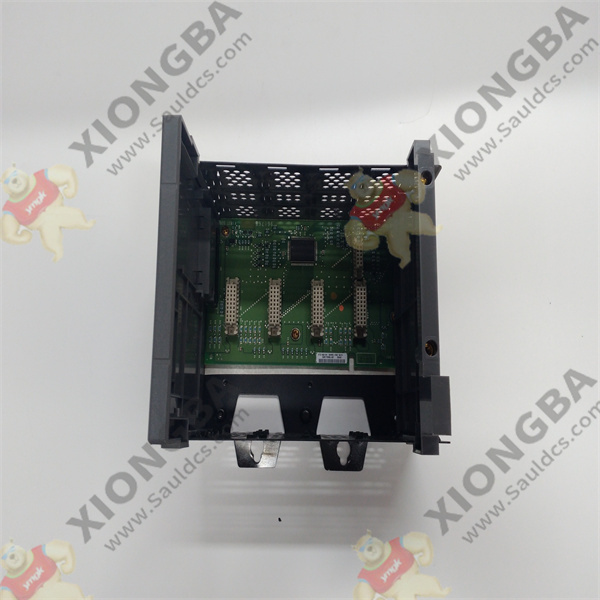

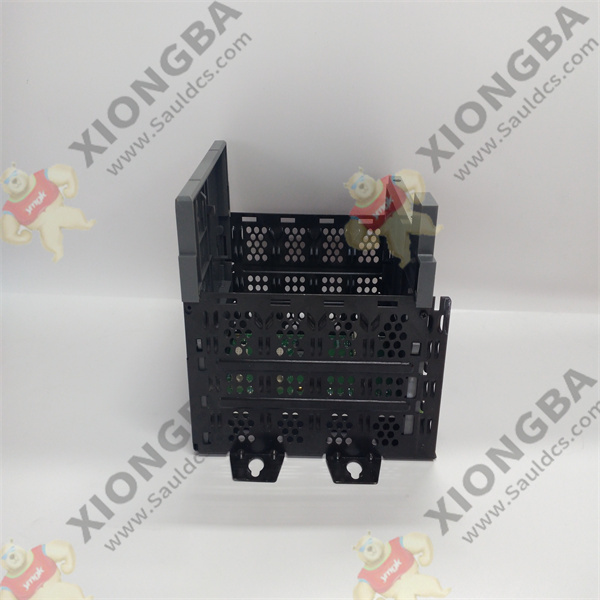

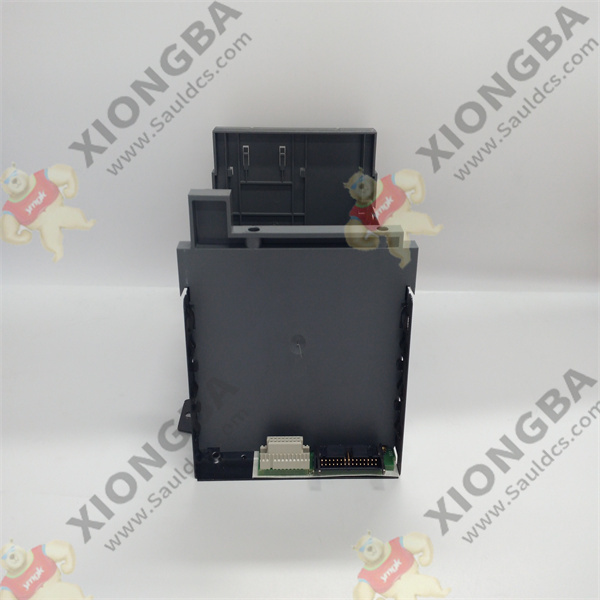

The Allen-Bradley 1746-A4 is a SLC 500 I/O Chassis with 4 Slots.

This I/O Chassis weighs 1.6 pounds (0.7 kilograms) and has the following dimensions: 6.73 x 6.97 x 5.71 inches.

The Allen-Bradley 1746-A4 is an expansion module constructed with 4 slots and mounting tabs to house modules from series SLC 500.

This part itself belongs in the series SLC 500 A Modular Chassis.

Category: Tags:

Description

Technical Specifications for 1746-A4

Manufacturer Rockwell Automation
Brand Allen-Bradley
Part Number/Catalog No. 1746-A4
Series SLC 500
Hardware Type I/O Chassis

The Allen-Bradley 1746-A4 is an expansion module constructed with 4 slots and mounting tabs to house modules from series SLC 500. This part itself belongs in the series SLC 500 A Modular Chassis. This panel-mounted rack needs its own power supply which will be mounted on the left end panel (power supply support panel) with screws. The right end and center panels are kept still by a latch, and therefore don’t require any screws. Install the chassis on the enclosure by securing 4 holes for the mounting tabs.  To allow an electric path between the chassis and the back panel, it may be necessary to scrape some of the paint off.

The 4-slot 1746-A4 Modular Chassis may be applied in a configuration with multiple chassis or as a single unit configuration. When used alone, keep the connector plug of the chassis on the left side. Up to three chassis can be joined together using the chassis interconnect cable. This setup creates 30 I/O slots, maximum. Take note that different installation layouts will require a different cable. When connecting chassis side-by-side, use the 1746-C7 cable which is 152.4 millimeters (6 inches) in length. To station one chassis below the other, choose from the 14.4 millimeter (36 inch) long 1746-C9 or 1.27 meter (50 inch) long 1746-C16.

1746-A4

1746-A4

1746-A4

1746-A4

1746-A4
