Description
Technical Specifications IC755CSW07CDA
IC755CSW07CDA is Emerson Automation’s QuickPanel+ Operator terminal. The device is commonly referred to by most in the industry as the Human-machine Interface (HMI) or Operator Interface Terminal (OIT) because the electronic device is primarily used to provide real-time monitoring and control of the connected machine or process through an embedded 7-inch widescreen display with a resolution of 800 x 480 pixels and a multi-touch operator input interface. In addition, the terminal can act as a controller, machine gateway, and data history.
The IC755CSW07CDA is an HMI device that supports panel installation or VESA 75 installation. It requires an input supply voltage of +24 VDC±20% to be terminated to the provided 3-pin Phoenix connector. The device’s maximum power consumption is also 15 watts. It uses natural convection to cool equipment and must be installed in an application area with a temperature range of 0-55 degrees Celsius and a relative humidity of 85%.
IC755CSW07CDA is preinstalled with an instance of Windows Compact Embedded 7 operating system (OS). The operating system provides a user-friendly configuration environment and provides connectivity capabilities and terminal management functions and tools. The HMI is equipped with an Intel Freescale i.MX535 1 GHz ARM Cortex A8 processor that integrates memory consisting of 512 MB DDR2 SDRAM, 256 MB SLC NAND flash and 512 KB SRAM.

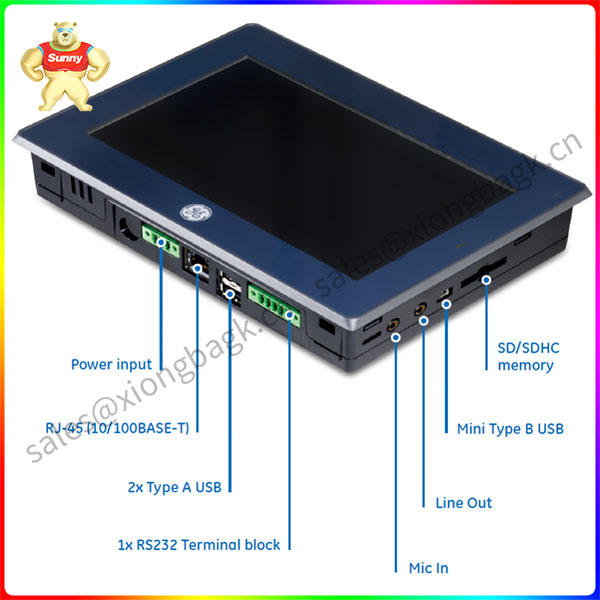

The HMI is equipped with one (1) Ethernet I/P communication port and one (1) RS232 communication interface. It also has three (3) USB ports and one (1) SD SDHC removable card slot for memory expansion.
The IC755CSW07CDA terminal is a 7 “Quickpanel terminal manufactured by GE Fanuc. It is a Quickpanel series terminal with a colour TFT widescreen screen that displays clear data and information. The panel supports multi-touch and is easy to use. It has a resolution of WVGA 800 x 480 pixels. It is powered by a 24 volt DC supply. The terminal uses GE monogram circles. The terminal has a NEMA 4X housing design. It is equipped with 512 MB DDR2 SDRAM and 256 MB NAND flash memory for storage. The IC755CSW07CDA terminal has a 10/100 Base T Ethernet port and an RS-232 port for communication. There are also two USB ports in the display terminal. The temperature should be kept between 0 and 55 degrees Celsius for optimal operation. The operator interface terminal has been certified by UL, ce and en standards.
The GE Fanuc IC755CSW07CDA terminal is powered by a 1 GHz speed ARM A8 cortex processor. It can easily handle 2D and 3D graphics. The terminal is equipped with a Neon SIMD media accelerator that helps handle graphics-intensive processes. There is also another vector floating-point coprocessor to handle logical operations. The terminal uses the Windows 7 operating system to interact with the operator. The IC755CSW07CDA terminal has a maximum rated power consumption of 15 watts. Natural convection methods are used to maintain the temperature at the terminal. When not in use, it can be stored in a temperature range of -10 to 60 degrees Celsius.
